ABB
Miniature Circuit Breakers, S200P Series

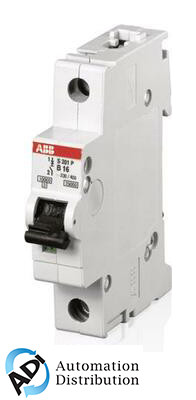

Item# S201P-Z1.6 - CIRCUIT BREAKER, 1P, 1.6A,
S200P Series Information
- Supplemental Protector
- Use as Overcurrent Protection
- UL 1077 - E76126
- K, Z Trip Characteristics
- Finger Safe Terminals
- 480Y/277 VAC
- 0.2 to 63 Amps
- Line and Load Terminals Included
Specifications
Item Number:
S201P-Z1.6
UPC:
6620191785310
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S200P
Poles:
1
Amps:
1.6
UL Standard:
Trip Curve:
Terminal Type:
Screw
Max Voltage:
253 VAC;72 VDC
Shunt Trip:
Optional
Protection:
Supplemental
Auxiliary Switch:
Optional
Undervoltage Release:
Optional
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
DIN Rail
Neutral Pole:
No
kAIC @ 240 VAC:
10
CSA Standard:
22.2
IEC Standard:
60898, 60947-2
kAIC @ 120 VAC:
10
kAIC @ 277 VAC:
10
Alarm Switch:
Optional
Busbar:
Optional
Approvals:
UL;CSA
H x W x D:
3.35 in x .69 in x 2.98 in
Net Weight:
5.1256 oz
Gross Weight:
5.1256 oz
