Description
Overview
ABB

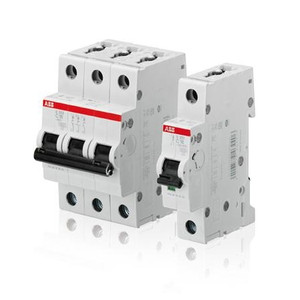

Miniature Circuit Breakers, S280UC Series
Item# S281UC-K16FS - Circuit Breaker UC FS (Rail) 1P K 16A VAC/VDC RT
S280UC Series Information
- Supplemental Protector
- Use as Overcurrent Protection
- UL 1077 - E76126
- K, Z Trip Characteristics
- Finger Safe Terminals
- 500 VDC
- 0.2 to 63 Amps
- Line and Load Terminals Included
Specifications
Item Number:
S281UC-K16FS
UPC:
804325565097
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Miniature
Series:
S280UC
Poles:
1
Amps:
16
UL Standard:
Trip Curve:
Terminal Type:
Screw
Max Voltage:
480 VAC;125 VDC
Shunt Trip:
Optional
Protection:
Supplemental
Auxiliary Switch:
Optional
Undervoltage Release:
Optional
Terminals Included:
Line / Load
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
DIN Rail
Neutral Pole:
No
kAIC @ 240 VAC:
10
IEC Standard:
60898, 60947-2
kAIC @ 120 VAC:
10
kAIC @ 277 VAC:
10
kAIC @ 60 VDC:
10
kAIC @ 125 VDC:
10
kAIC @ 250 VDC:
4.5
Alarm Switch:
Optional
Busbar:
Optional
Approvals:
UL
H x W x D:
3.54 in x .69 in x 2.72 in
Net Weight:
4.9442 OZ
Gross Weight:
4.9442 OZ
