ABB TEYF360 3 Pole 60 Amp Circuit Breaker – Compact Design with Quick-Make/Break Mechanisms for 480Y/277 Vac Systems

ABB TEYF360 3 Pole 60 Amp Circuit Breaker – Compact Design with Quick-Make/Break Mechanisms for 480Y/277 Vac Systems

ABB
SKU:
TEYF360
|
UPC:
783164388558
Availability:
Commonly Stocked at Factory
$1,037.88
Condition:
New
Current Stock:
Description

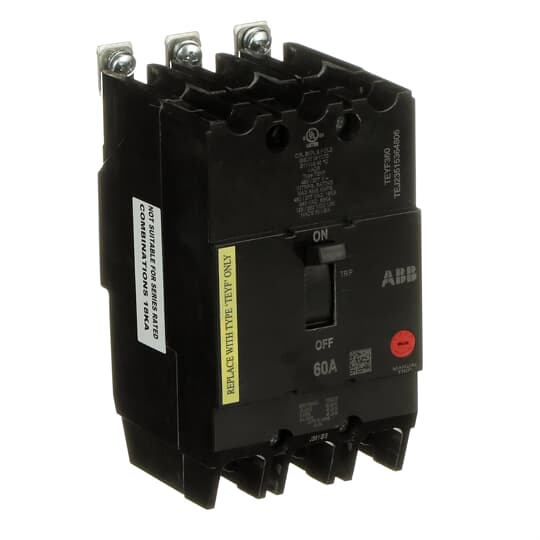

The ABB TEYF360 Teyf 3 Pole 60 Amp circuit breaker is designed for optimal performance in grounded 480Y/277 Vac systems. Its compact, one-inch wide per pole design and bolt-on mounting base make it versatile for various applications as a lug-lug breaker. This model features Quick-make / Quick-break mechanisms, common trip bars, and a clear trip indication for enhanced safety and reliability. Available in 1, 2, and 3 pole versions, the TEYF breakers can be customized with auxiliary contact and shunt trip accessories to meet specific needs.
Additional Information
Application:
Thermal Magnetic
Sub Brand:
TEYF
Trip Range:
Non-Interchangeable
Interrupt Rating:
18kA@277 Vac / 65kA@120/240 Vac / 65kA@240 Vac / 18kA@480/277 Vac
Standard:
E11592
Connection:
#10-#4
Amperage Rating:
60A
Number Of Poles:
3
Trip Type:
LI
Frame:
TEYF
Brand Name:
TEY / Q-Line (Bolt-On)
Spec Sheet:
View
