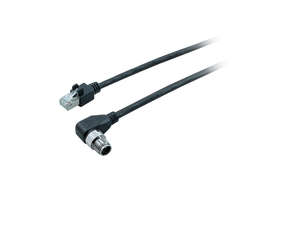

This Baumer Cable GigE M12X/RJ45 is a 30.0m long, shielded twisted pair (STP) flexible cable designed for use in cable carriers. It features an 8-pole M12/x-coded connector with a screw lock and an RJ45 connector. The cable supports up to 1,000,000 bending cycles and has a smallest static bending radius of 35.4 mm. It is made from TPU, is halogen-free, and weighs up to 2100 g. Ideal for dynamic applications requiring high durability and flexibility.
- Type:
- Distance measuring
- Version:
- OM70 multi-spot
- Measuring distance Sd:
- 100 150 mm
- Measuring range (width):
- 48 72 mm
- Adjustment:
- Webserver, Ethernet TCP/IP
- Power on indication:
- LED green
- Output indicator:
- LED yellow / LED red
- Ethernet link indication:
- LED blue
- Resolution:
- 2 4 µm
- Linearity error:
- ± 30 90 µm 1) 2) 4)
- Beam type:
- Multi-spot
- Temperature drift:
- ± 0,04 % Sde/K 1) 2) 4)Light source=Pulsed red laser diode
- Wave length:
- 656 nm
- Laser class:
- 1
- Response time / release time:
- 3.5 ms 2) 3)
- Measuring frequency:
- 570 Hz 2) 3)
- Voltage supply range +Vs:
- 15 28 VDC
- Current consumption max. (no load):
- 150 mA
- Output current:
- 100 mA
- Switching output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 26 mm
- Height / length:
- 74 mm
- Depth:
- 55 mm
- Design:
- Rectangular, front view
- Housing material:
- Aluminum
- Front (optics):
- Glass
- Connection types:
- Connector M12 8 pin & M12 4 pin
- Weight:
- 135 g
- Ambient light immunity:
- < 35 kLux
- Protection class:
- IP 67
- Operating temperature:
- -10 +50 °C
- Storage temperature:
- -20 +60
- Vibration (sinusoidal):
- IEC 60068-2-6:2008 1.5 mm p-p at f = 10 - 57 Hz, 10 cycles per axis 10 g at f = 58 - 2000 Hz, 10 cycles per axis
- Shock (semi-sinusoidal):
- IEC 60068-2-27:2009 30 g / 11 ms, 6 jolts per axis and direction
