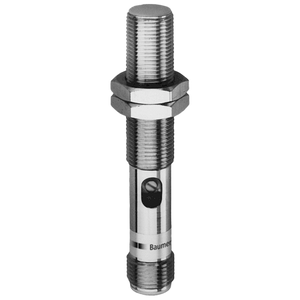

The Baumer CFAM 12P3600 10238060 is a cylindrical threaded proximity sensor with a nominal sensing distance of 4 mm, adjustable from 0.5 to 4 mm. It features flush mounting and a ground electrode for enhanced stability. The sensor operates within a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 20 mA. It includes a PNP break function (NC) output circuit with an output current of 200 mA and a voltage drop of less than 1.5 VDC. The switching frequency is 50 Hz. This model is equipped with short circuit and reverse polarity protection, ensuring reliable operation. The sensor has a brass nickel-plated housing, measures 12 mm in diameter, and is 60 mm long. It connects via a 2-meter cable and operates in temperatures ranging from -25 to +75 °C. The sensor is IP 65 rated, indicating dust tightness and protection against water jets. It is suitable for contactless detection of non-conductive media, bulk goods, and can detect fill levels through containers, although it is not designed for direct contact with liquids. An LED yellow output indicator and a 240° potentiometer for sensitivity adjustment enhance usability.
- Nominal sensing distance Sn:
- 4 mm
- Nominal sensing distance Sn adjustable:
- 0.5 4 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 240°
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP break function (NC)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Dimension:
- 12 mm
- Housing length:
- 60 mm
- Connection types:
- Cable, L=2 m
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
