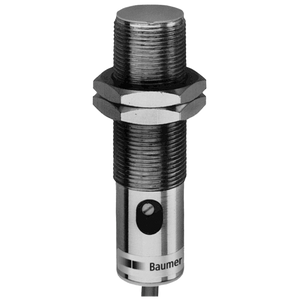

Baumer CFAM 18N1600/S14 10119696
Baumer
$398.50
The Baumer CFAM 18N1600/S14 10119696 is a cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm, adjustable from 2 to 8 mm. It features flush mounting, a GND electrode, and a temperature drift of ±15% over a range of +10 to +70 °C. The sensor offers a sensitivity adjustment via a 12-turn potentiometer and includes a yellow LED output indicator. It operates contactlessly and can detect non-conductive media, making it suitable for fill level detection through containers, though it is not intended for direct contact with liquids. It can also detect objects or bulk goods. The sensor operates on a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA when no load is present. It has an NPN make function (NO) output circuit, supports an output current of 200 mA, and features a voltage drop of less than 1.5 VDC. The switching frequency is 50 Hz, and it includes short circuit and reverse polarity protection. The housing is made of brass nickel-plated material, measures 18 mm in diameter, and is 78.5 mm long. It connects via an M12 connector and operates within a temperature range of -25 to +75 °C. The sensor is rated IP 65 for protection against dust and water ingress.
- Nominal sensing distance Sn:
- 8 mm
- Nominal sensing distance Sn adjustable:
- 2 8 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 12 turn
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- NPN make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 78.5 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
- Datasheet:
- View
