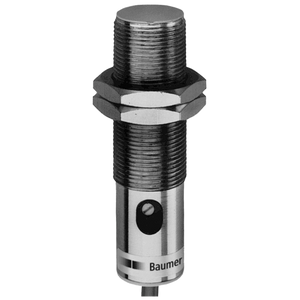

Baumer CFAM 18P1600/S14 10236459 is a cylindrical threaded proximity sensor with a nominal sensing distance of 8 mm, adjustable from 2 to 8 mm. It features flush mounting, a GND electrode, and a temperature drift of ±15% between +10 and +70 °C. The sensor offers sensitivity adjustment via a 12-turn potentiometer and includes a yellow LED output indicator. It operates contactlessly and can detect non-conductive media, making it suitable for fill level detection through containers and object detection in bulk goods. It does not allow liquids in direct contact. The sensor operates on a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 20 mA when unloaded. It has a PNP make function (NO) output circuit, supports an output current of 200 mA, and features a voltage drop of less than 1.5 VDC. The switching frequency is 50 Hz, and it includes short circuit and reverse polarity protection. The housing is made of brass nickel-plated material, measures 18 mm in diameter, and is 78.5 mm long. It connects via an M12 connector and operates within a temperature range of -25 to +75 °C. The sensor is IP 65 rated, indicating dust tightness and protection against water jets. [View Datasheet](https://www.baumer.com/medias/__secure__/Baumer_CFAM-18P1600-S14_EN_20230331_DS.pdf?mediaPK=9065647341598).
- Nominal sensing distance Sn:
- 8 mm
- Nominal sensing distance Sn adjustable:
- 2 8 mm
- Mounting type:
- Flush
- GND electrode:
- Yes
- Temperature drift:
- ± 15 % (+10 ... +70 °C)
- Sensitivity adjustment:
- Potentiometer, 12 turn
- Output indicator:
- LED yellow
- Measurement type:
- Contactless
- Detection of non-conductive media:
- Yes
- Fill level detection through container:
- Yes
- Liquids in direct contact:
- No
- Object detection / bulk goods:
- YesVoltage supply range +Vs=10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Output circuit:
- PNP make function (NO)
- Output current:
- 200 mA
- Voltage drop Vd:
- <1.5 VDC
- Switching frequency:
- 50 Hz
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Dimension:
- 18 mm
- Housing length:
- 78.5 mm
- Connection types:
- Connector M12
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 65
