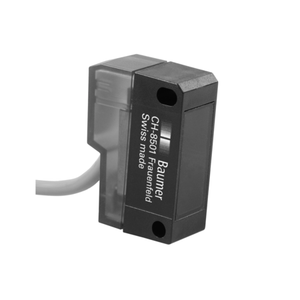

The Baumer FADK 14U4470/S14/IO 11014499 is a high-precision sensor designed for distance measurement, featuring a measuring range of 50 to 400 mm and a beam diameter of 8 mm. It offers adjustable settings via IO-Link and a teach-in range starting from 20 mm. The device includes a green LED for power indication and a red LED to signal a soiled lens. It boasts a resolution between 100 to 1000 µm and a linearity error of ± 1.5 to 4 mm. The sensor operates with a pulsed point source LED light, emitting at a wavelength of 660 nm, and responds quickly with a time of less than 3 ms. It supports a voltage supply range of 14 to 26 VDC and consumes a maximum of 80 mA with no load. The output is analog, providing a signal from 0 to 10 VDC, and can handle a load resistance of over 100 kOhm. Additional features include a push-pull alarm output, short circuit and reverse polarity protection. The compact, rectangular housing measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, made from durable plastic materials with a PMMA front optics. It connects via an M12 4-pin connector and is rated IP 67 for protection against dust and water, suitable for operating temperatures from 0 to +50 °C. Links to the datasheet and operating manual are provided for detailed specifications and usage instructions.
- Measuring distance Sd:
- 50 400 mm
- Beam diameter:
- 8 mm
- Adjustment:
- IO-Link
- Teach-in range min.:
- > 20 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 100 1000 µm
- Linearity error:
- ± 1.5 4 mm
- Beam type:
- Point
- Temperature drift:
- < 0,1 % Sde/KLight source=Pulsed point source LED
- Wave length:
- 660 nm
- Response time / release time:
- < 3 ms
- Voltage supply range +Vs:
- 14 26 VDC
- Current consumption max. (no load):
- 80 mA
- Output circuit:
- Analog
- Output signal:
- 0 ... 10 VDC
- Load resistance (analog U):
- > 100 kOhm
- Output current:
- 100 mA
- Alarm output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M12 4 pin
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
- Datasheet:
- View
- Operating Manual:
- View
