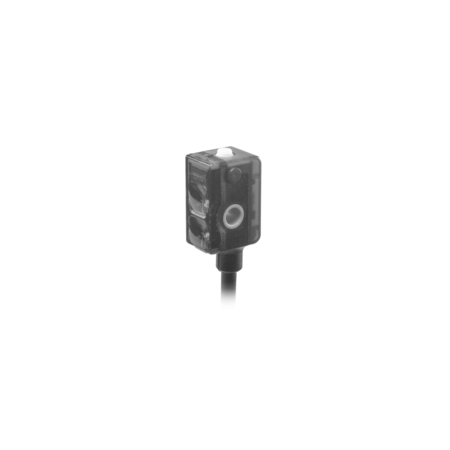

Baumer FEDK 07P6901/KS35A 10151071
Baumer
$344.00
The Baumer FEDK 07P6901/KS35A 10151071 is a through beam sensor designed for precise object detection with a receiver component. It features an actual range of 2 meters and a nominal range of 2.5 meters. The sensor is equipped with a flashing light indicator for alignment or soiled lens detection, and LED indicators for status confirmationgreen for power and yellow for output. It offers a quick response time of less than 0.5 ms and sensitivity adjustment via Teach-in. The sensor operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 20 mA and a voltage drop of less than 1.8 VDC. It supports both light and dark operating modes with a PNP output circuit and can handle an output current of up to 100 mA. Safety features include short circuit and reverse polarity protection. The compact, rectangular design measures 8 mm in width, 16.2 mm in height, and 10.8 mm in depth, with a housing made from durable plastic materials like PMMA, MABS, and PA. The sensor is fitted with a Flylead connector M8 4 pin, 200 mm in length, and operates within a temperature range of -20 to +50 °C. It is rated IP 65 for protection against dust and water ingress.
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 2 m
- Nominal range Sn:
- 2.5 m
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED green
- Output indicator:
- LED yellow
- Sensitivity adjustment:
- Teach-in
- Response time / release time:
- < 0.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 16.2 mm
- Depth:
- 10.8 mm
- Design:
- Rectangular
- Housing material:
- Plastic (PMMA, MABS, PA)
- Front (optics):
- PMMA
- Connection types:
- Flylead connector M8 4 pin, L=200 mm
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 65
