Description

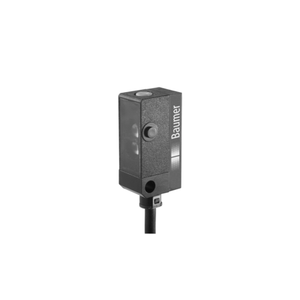

Baumer FEDK 10N5101/S35A 10132393 is a through beam sensor designed as a receiver with an actual range of 5 m and a nominal range of 6 m. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. The sensitivity can be adjusted via a 270° potentiometer. This sensor has a quick response and release time of less than 1.4 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 16 mA and a voltage drop of less than 1.8 VDC. The output functions include light/dark operate with an NPN output circuit and a maximum output current of 100 mA. It includes short circuit and reverse polarity protection. The sensor's dimensions are 10.4 mm in width, 27 mm in height, and 14 mm in depth, with a rectangular plastic (ASA) housing and PMMA front optics. It connects via an M8 4-pin connector and operates within a temperature range of -25 to +65 °C. The sensor is IP 67 rated for protection against dust and water ingress.
