Baumer FEDM 08P1002/S35L 10236653
Baumer

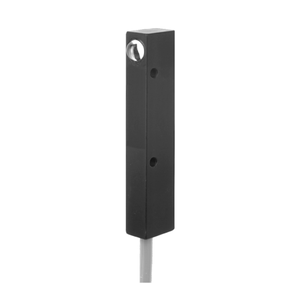

The Baumer FEDM 08P1002/S35L 10236653 is a through beam sensor designed as a receiver with an actual range of 2.5 m and a nominal range of 3 m. It features a flashing light indicator for alignment or soiled lens detection, and a red LED light indicator. This model does not include sensitivity adjustment and boasts a quick response time of less than 2.5 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 24 mA and a voltage drop of less than 2 VDC. The output function is light operate with a PNP output circuit and an output current of 100 mA. It includes safety features such as short circuit and reverse polarity protection. The sensor's dimensions are 8 mm in width, 58 mm in height, and 15 mm in depth, with a rectangular, anodized aluminum housing and a PC front optics. It connects via an M8, 3-pin connector and operates within a temperature range of -25 to +65 °C. The sensor is rated IP 65 for protection against dust and water ingress.
- Type:
- Through beam sensor
- Emitter / receiver:
- Receiver
- Actual range Sb:
- 2.5 m
- Nominal range Sn:
- 3 m
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED red
- Sensitivity adjustment:
- No
- Response time / release time:
- < 2.5 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 24 mA
- Current consumption typ.:
- 24 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Light operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 58 mm
- Depth:
- 15 mm
- Design:
- Rectangular
- Housing material:
- Aluminum anodized
- Front (optics):
- PC
- Connection types:
- Connector M8, 3 pin
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 65
