Description

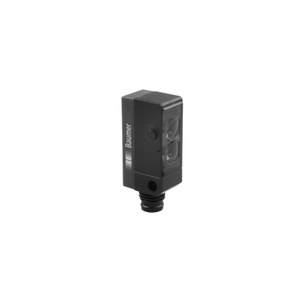

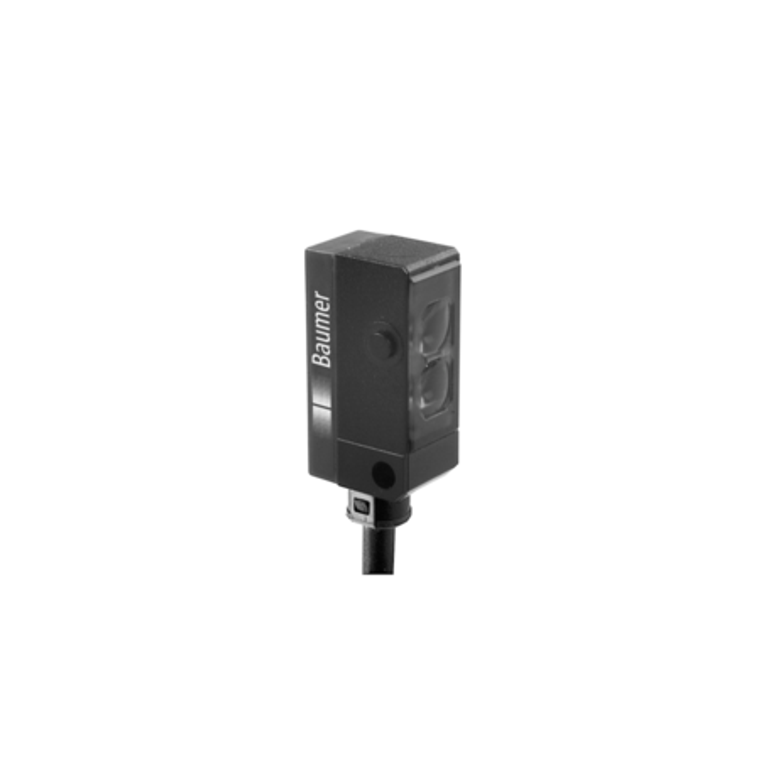

The Baumer FHDK 10G5121 10160689 is a background suppression sensor with a sensing distance of 50 mm ±3 mm. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. The sensor uses a pulsed red LED light source with a wavelength of 660 nm and boasts a quick response and release time of less than 1 ms. It operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 18 mA and a maximum of 25 mA. The output function can be set to light or dark operate, and it includes a push-pull output circuit with a maximum output current of 50 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 10.4 mm in width, 27 mm in height, and 14.7 mm in depth, with a plastic (ASA) housing and PMMA front optics. It connects via a 4-pin, 2-meter cable and is rated IP 65 for protection against dust and water, suitable for operating temperatures ranging from -25 to +65 °C.
