Description

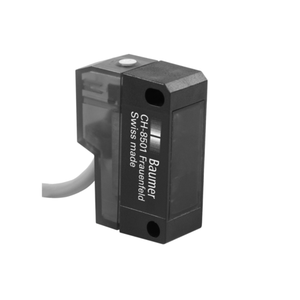

The Baumer FHDK 14P5104/S14 11001173 is a background suppression sensor with a sensing distance ranging from 30 to 500 mm. It features a mechanical, 10-turn adjustment for sensing distance, and a flashing light indicator for alignment or soiled lens detection. The sensor uses a pulsed red LED light source with a wavelength of 660 nm and has a quick response time of less than 5 ms. It operates on a voltage supply range of 10 to 30 VDC and has a typical current consumption of 25 mA. The output function can be set to light or dark operate, and it includes a PNP output circuit capable of handling 100 mA output current. Safety features include short circuit and reverse polarity protection. The sensor's compact, rectangular design measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, with a housing made of plastic (ASA, MABS) and a PMMA front optics. It includes an M12 4-pin connector and is rated IP 67 for protection against dust and water ingress, suitable for operating temperatures ranging from -25 to +65 °C.
