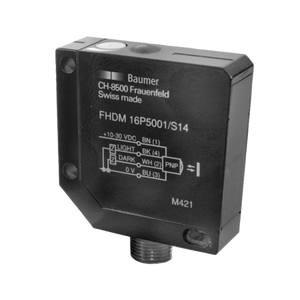

Baumer FHDM 16P5001 10232117 is a background suppression sensor with a sensing distance of 20 to 450 mm and a quick response time of less than 1 ms. It features a pulsed red LED light source with a wavelength of 660 nm and mechanical sensing distance adjustment. The sensor includes a yellow LED indicator and offers both light and dark operating modes through its PNP output circuit. It supports a voltage supply range of 10 to 30 VDC and has a maximum current consumption of 41 mA. The device is equipped with short circuit and reverse polarity protection, ensuring durability and reliability. Its rectangular, die-cast zinc housing measures 15.4 mm in width and 50 mm in both height and depth, and it is designed to withstand harsh environments with an IP 67 protection rating and an operating temperature range of -25 to +65 °C. The sensor connects via a 4-pin, 2-meter cable, making installation straightforward.
- Type:
- Background suppression
- Sensing distance Tw:
- 20 450 mm
- Sensing range Tb (at Tw max.):
- 20 450 mm
- Sensing range Tb (at Tw min.):
- 5 20 mm
- Light indicator:
- LED yellow
- Sensing distance adjustment:
- Mechanical, 5 turn
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 41 mA
- Current consumption typ.:
- 29 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- PNP
- Output current:
- 200 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 15.4 mm
- Height / length:
- 50 mm
- Depth:
- 50 mm
- Design:
- Rectangular
- Housing material:
- Die-cast zinc
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- -25 +65 °C
