Baumer FKDH 14G6901 11096635

Baumer FKDH 14G6901 11096635

Baumer
SKU:
11096635
Availability:
Contact us to confirm availability and lead times.
$667.00
Condition:
New
Current Stock:
Description

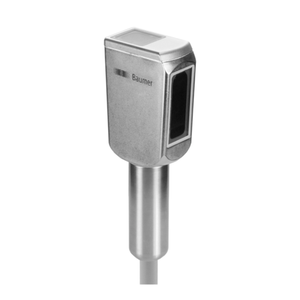

The Baumer FKDH 14G6901 11096635 is a diffuse contrast sensor designed for hygienic applications, featuring a sensing distance of 12.5 mm ±2 mm. It includes a white LED light source, green LED light indicator, and yellow LED output indicator. The sensor offers a quick response time of less than 0.05 ms and operates with a voltage supply range of 18 to 30 VDC. It is equipped with teach-in sensitivity adjustment, push-pull output circuit, and supports both light and dark operating modes. The sensor is protected against short circuits and reverse polarity, and it is housed in a robust stainless steel 1.4404 (V4A) with a PMMA front optics. It has a compact rectangular design, measuring 19.6 mm in width, 52.2 mm in length, and 34.3 mm in depth. The connection is facilitated via a 4-pin, 2-meter cable. This sensor is highly durable with IP 68/69K and proTect+ ratings, making it suitable for harsh environments, and operates within a temperature range of -25 to +60 °C.
Additional Information
Measuring distance Sd:
100 … 200 mm
Adjustment:
Teach-in: button / external
Teach-in range min.:
> 5 mm
Power on indication:
LED green
Soiled lens indicator:
LED red
Resolution:
39 … 150 µm
Linearity error:
± 0.123 … 0.457 mm
Beam type:
Line
Interference suppression:
< 30 ms
Object reflectivity:
> 2 %
Temperature drift:
< 0,07 % Sde/KLight source=Pulsed red laser diode
Wave length:
650 nm
Laser class:
1
Response time / release time:
< 2 ms
Voltage supply range +Vs:
12 … 28 VDC
Current consumption max. (no load):
100 mA
Output circuit:
Analog
Output signal:
4 ... 20 mA
Load resistance:
< (+Vs - 6 V) / 0,02 A
Short circuit protection:
Yes
Reverse polarity protection:
Yes, Vs to GND
Width / diameter:
13.4 mm
Height / length:
48.2 mm
Depth:
40 mm
Design:
Rectangular
Housing material:
Aluminum
Front (optics):
Glass
Connection types:
Connector M8 4 pin
Ambient light immunity:
< 100 kLux
Protection class:
IP 67
Operating temperature:
0 … +50 °C
Datasheet:
View;
