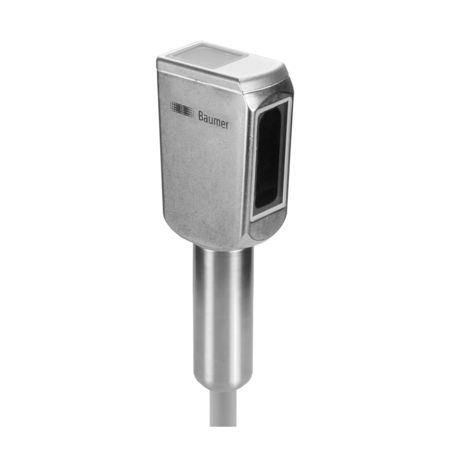

Baumer FPDH 14N5101/KS34A 11096623
Baumer
The Baumer FPDH 14N5101/KS34A 11096623 is a retro-reflective sensor designed for hygienic applications, featuring a pulsed red LED light source with a wavelength of 660 nm. It offers a nominal range of 3.5 meters and an actual range of 3 meters, equipped with a polarization filter to minimize false readings. This sensor includes a flashing light indicator for alignment or soiled lens detection and a yellow LED light indicator. It operates without sensitivity adjustment and has mechanisms for suppression of reciprocal influence. Certified by Ecolab and adapted from EHEDG, it ensures rapid response and release times of less than 1 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with typical current consumption of 20 mA and a maximum of 25 mA. It features light/dark operate output functions, NPN output circuit, and supports an output current of 100 mA. Enhanced durability is ensured with short circuit and reverse polarity protection. The sensor's robust stainless steel 1.4404 housing and PMMA front optics are designed to withstand harsh conditions, with an operating temperature range of -30 to +60 °C and a high protection class of IP 68/69K & proTect+. It measures 19.6 mm in width, 52.2 mm in height, and 34.3 mm in depth, and comes with a flylead connector M12. Ideal for demanding environments requiring stringent cleanliness and reliability.
- Measuring distance Sd:
- 50 400 mm
- Beam diameter:
- 8 mm
- Adjustment:
- IO-Link
- Teach-in range min.:
- > 20 mm
- Power on indication:
- LED green
- Soiled lens indicator:
- LED red
- Resolution:
- 100 1000 µm
- Linearity error:
- ± 1.5 4 mm
- Beam type:
- Point
- Temperature drift:
- < 0,1 % Sde/KLight source=Pulsed point source LED
- Wave length:
- 660 nm
- Response time / release time:
- < 3 ms
- Voltage supply range +Vs:
- 14 26 VDC
- Current consumption max. (no load):
- 80 mA
- Output circuit:
- Analog
- Output signal:
- 0 ... 10 VDC
- Load resistance (analog U):
- > 100 kOhm
- Output current:
- 100 mA
- Alarm output:
- Push-pull
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes, Vs to GND
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Cable 4 pin, 2 m
- Protection class:
- IP 67
- Operating temperature:
- 0 +50 °C
- Datasheet:
- View
- Operating Manual:
- View
- QN-QUOTE-REQUEST:
- true
