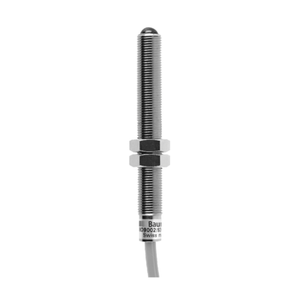

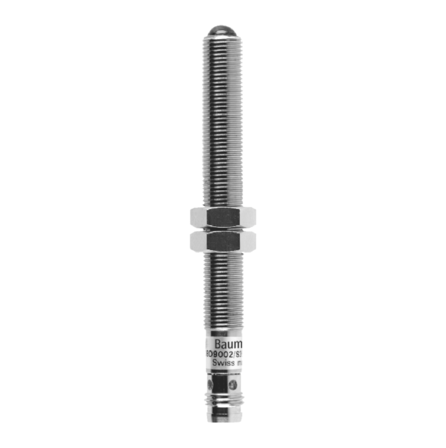

The Baumer FSAM 08D9002/S35 10238037 is a through beam sensor designed as an emitter. It features a pulsed infrared diode light source with a wavelength of 880 nm. The sensor has an actual range of 2.5 m and a nominal range of 3 m. It operates on a voltage supply range of 10 to 30 VDC, with a maximum current consumption of 48 mA and a typical consumption of 17 mA. This model includes reverse polarity protection and is housed in a cylindrical threaded, brass nickel-plated body with a diameter of 8 mm and a length of 75.5 mm. The front optics are made of PC. It connects via an M8, 3-pin connector and operates within a temperature range of -25 to +65 °C. The sensor is rated IP 65 for protection against dust and water.
- Type:
- Through beam sensor
- Emitter / receiver:
- Emitter
- Light source:
- Pulsed infrared diode
- Actual range Sb:
- 2.5 m
- Nominal range Sn:
- 3 m
- Wave length:
- 880 nm
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 48 mA
- Current consumption typ.:
- 17 mA
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 75.5 mm
- Design:
- Cylindrical threaded
- Housing material:
- Brass nickel plated
- Front (optics):
- PC
- Connection types:
- Connector M8, 3 pin
- Operating temperature:
- -25 +65 °C
- Protection class:
- IP 65
