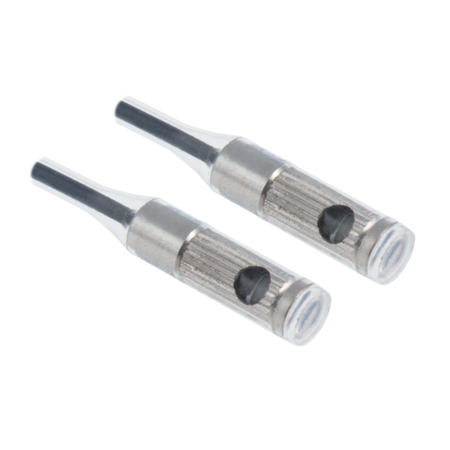

Baumer FSC 200C4Y00 10135349

Baumer FSC 200C4Y00 10135349

Baumer
SKU:
10135349
Availability:
Contact us to confirm availability and lead times.
$1,998.00
Condition:
New
Current Stock:
Description
The Baumer FSC 200C4Y00 10135349 is a through-beam type fiber optic sensor with a cylindrical smooth, side-view head. It features chemically-resistant plastic fiber optics and a smooth sensing head. The sensor has an actual range of 3400 mm and operates within a temperature range of -30 to +70 °C. The fiber optics, with a diameter of 0.75 mm and a bending radius of 20 mm, can be shortened to the desired length. The head dimensions are 4.7 mm in width/diameter and 15.8 mm in height/length, made from stainless steel and PFA. The cable jacket, also made from chemically resistant PFA, has a diameter of 2.2 mm and a length of 200 cm. This model does not support an integrated or adaptable lens and is not compatible with infrared light at 1450 nm.
Additional Information
Particular characteristics:
Chemically-resistant plastic fiber optics Smooth sensing head Side view
Operating principle:
Through-beam type
Actual range Sb:
3400 mm
Fiber optic head:
Cylindrical smooth, side view
Operating temperature:
-30 … +70 °C
Exit angle:
60°
Fiber optics can be shortened to length:
Yes
Integrated lens:
No
Adaptable lens:
No
Infrared light compatibility (1450 nm):
NoDiameter Fiber=0.75 mm
Width / diameter (head):
4.7 mm
Height / length (head):
15.8 mm
Material (head):
Stainless steel/PFA
Bending radius (fixed):
20 mm
Cable jacket diameter:
2.2 mm
Material cable jacket:
PFA (chemically resistant)
Material (fiber optic cable):
Plastic
Length (fiber optic cable):
200 cm
Datasheet:
View
