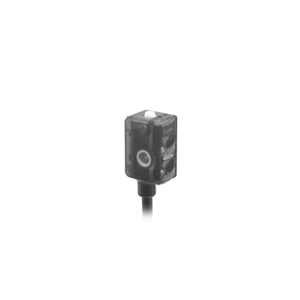

Baumer FSDK 07D9601 10151065 is a through beam sensor designed as an emitter with a pulsed red LED light source. It features a nominal range of 2.5 m and an actual range of 2 m, with a wavelength of 660 nm. The sensor operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 12 mA and a maximum of 20 mA. It includes reverse polarity protection and is housed in a rectangular plastic body measuring 8 mm in width, 16.2 mm in length, and 10.8 mm in depth. The front optics are made of PMMA. It connects via a 2 m cable on the bottom side and operates within a temperature range of -20 to +50 °C. The sensor is rated IP 65 for protection against dust and water.
- Type:
- Through beam sensor
- Emitter / receiver:
- Emitter
- Light source:
- Pulsed red LED
- Actual range Sb:
- 2 m
- Nominal range Sn:
- 2.5 m
- Wave length:
- 660 nm
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 20 mA
- Current consumption typ.:
- 12 mA
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 16.2 mm
- Depth:
- 10.8 mm
- Design:
- Rectangular
- Housing material:
- Plastic (PMMA, MABS, PA)
- Front (optics):
- PMMA
- Connection types:
- Cable bottom side, 2 m
- Operating temperature:
- -20 +50 °C
- Protection class:
- IP 65
