Baumer FSE 025B1001 10258998
Baumer
$209.70

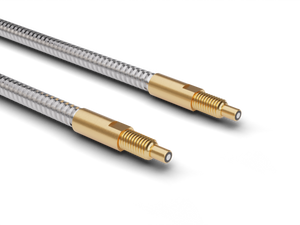

Baumer FSE 025B1001 10258998 is a through-beam type fiber optic sensor with a cylindrical threaded head made of brass. It features a 140 mm actual range and operates within a temperature range of -25 to +70 °C. The sensor has a 60° exit angle and is compatible with infrared light at 1450 nm. It does not have an integrated lens but supports adaptable lenses. The fiber optics are non-shortenable, with a head width/diameter of 3 mm and length of 17 mm. The threading is M3 x 0.5, and it has a bending radius of 7.5 mm when fixed and 15 mm when mobile. The cable jacket, made of PVC, has a diameter of 2.5 mm, and the fiber optic cable, made of glass, is 25 cm long with a cross section of 1 mm².
- Operating principle:
- Through-beam type
- Actual range Sb:
- 140 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- Yes
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=3 mm
- Height / length (head):
- 17 mm
- Material (head):
- Brass
- Thread:
- M3 x 0.5
- Bending radius (fixed):
- 7.5 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.5 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 1 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 25 cm
- Datasheet:
- View
