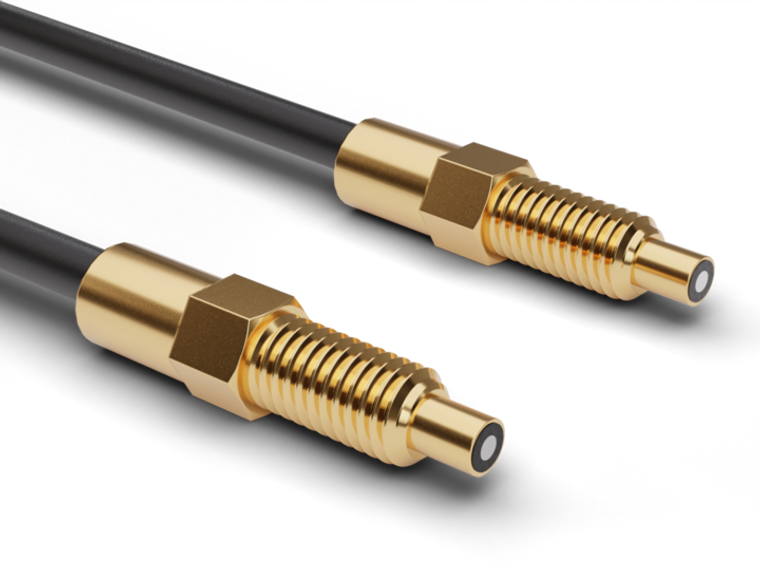

Baumer FSE 025B1003 10258997 is a through-beam type fiber optic sensor with a cylindrical threaded head. It features an actual range of 160 mm and operates within a temperature range of -25 to +70 °C. The sensor has a 60° exit angle and is compatible with infrared light at 1450 nm. It does not allow for fiber optics to be shortened but supports adaptable lenses. The head dimensions are 4 mm in width/diameter and 24 mm in height/length, made from brass with an M4 x 0.7 thread. The bending radius is 12 mm for fixed installations and 24 mm for mobile applications. The cable jacket, made of PVC, has a diameter of 4 mm, and the fiber optic cable, made of glass, measures 25 cm in length with a cross-section of 4 mm².
- Operating principle:
- Through-beam type
- Actual range Sb:
- 160 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- Yes
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Brass
- Thread:
- M4 x 0.7
- Bending radius (fixed):
- 12 mm
- Bending radius (mobile):
- 24 mm
- Cable jacket diameter:
- 4 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 4 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 25 cm
- Datasheet:
- View
