Baumer FSE 025B4003
Baumer
$365.90

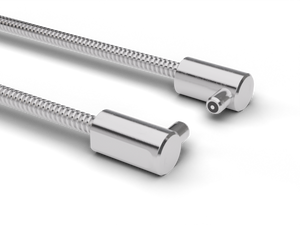

The Baumer FSE 025B4003 is a through-beam type fiber optic sensor with a smooth, cylindrical sensing head designed for side view applications. It features a 140 mm actual range and is compatible with infrared light at 1450 nm. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. The head measures 4 mm in width/diameter and 16 mm in height/length, made from durable aluminum. The fiber optic cable, with a cross section of 1 mm² and length of 25 cm, is made of glass and encased in a PVC jacket. This model does not support shortening of the fiber optics, nor does it include an integrated or adaptable lens. The fixed bending radius is 7.5 mm, and the mobile bending radius is 15 mm, ensuring flexibility in installation without compromising performance.
- Particular characteristics:
- Smooth sensing head Side view
- Operating principle:
- Through-beam type
- Actual range Sb:
- 140 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 7.5 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.5 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 1 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 25 cm
- Datasheet:
- View
