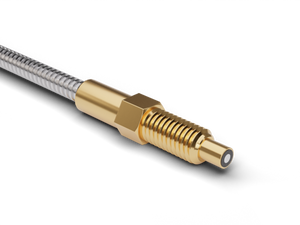

The Baumer FSE 050B1003 10258995 is a through-beam type fiber optic sensor with a cylindrical threaded head made of brass. It features a 500 mm actual range and operates within a temperature range of -25 to +70 °C. The sensor head measures 4 mm in width/diameter and 24 mm in height/length, with an M4 x 0.7 thread. It has a bending radius of 12 mm when fixed and 24 mm when mobile. The fiber optic cable, made of glass, is 50 cm long with a 4 mm² cross-section and a PVC jacket. This model does not allow for fiber shortening but supports adaptable lenses and is compatible with infrared light at 1450 nm.
- Operating principle:
- Through-beam type
- Actual range Sb:
- 500 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- Yes
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Brass
- Thread:
- M4 x 0.7
- Bending radius (fixed):
- 12 mm
- Bending radius (mobile):
- 24 mm
- Cable jacket diameter:
- 4 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 4 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
