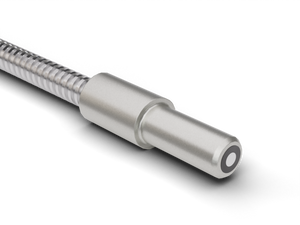

The Baumer FSE 050B2001 10258991 is a through-beam type fiber optic sensor with a smooth sensing head. It features a cylindrical smooth fiber optic head made of aluminum, measuring 3 mm in width/diameter and 17 mm in height/length. The sensor operates within a temperature range of -25 to +70 °C and has an actual range of 320 mm. It is designed with a 60° exit angle and is compatible with infrared light at 1450 nm. The fiber optic cable, made of glass, is 50 cm long with a cross section of 1 mm² and a PVC jacket. The cable has a bending radius of 7.5 mm when fixed and 15 mm when mobile. This sensor does not allow for shortening of the fiber optics, nor does it support integrated or adaptable lenses.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Through-beam type
- Actual range Sb:
- 320 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=3 mm
- Height / length (head):
- 17 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 7.5 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.5 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 1 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
