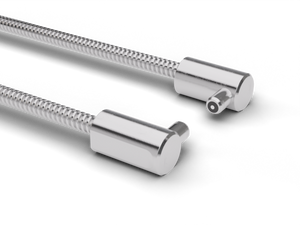

Baumer FSE 050B4003 10210357 is a through-beam type fiber optic sensor with a smooth, cylindrical side-view sensing head. It features an actual range of 3200 mm and operates within a temperature range of -25 to +70 °C. The sensor head, made of aluminum, measures 4 mm in width and 16 mm in length. It is designed for use with infrared light at 1450 nm and has an exit angle of 60°. The fiber optic cable, made of glass, is 50 cm long with a cross section of 1 mm² and a PVC jacket. The cable has a fixed bending radius of 7.5 mm and a mobile bending radius of 15 mm. This model does not support shortening of the fiber optics, nor does it include an integrated or adaptable lens.
- Particular characteristics:
- Smooth sensing head Side view
- Operating principle:
- Through-beam type
- Actual range Sb:
- 3200 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 7.5 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.5 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 1 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
