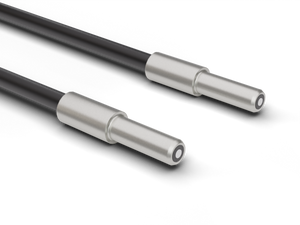

The Baumer FSE 100A1003 10258813 is a through-beam type fiber optic sensor with a cylindrical threaded head made of brass. It features a 1400 mm actual range and operates within a temperature range of -25 to +70 °C. The sensor has a 60° exit angle and is compatible with infrared light at 1450 nm. It does not have an integrated lens but supports adaptable lenses. The fiber optic cable, made of glass, measures 100 cm in length and 4 mm in diameter, with a PVC jacket. The bending radius is 12 mm when fixed and 24 mm when mobile. The sensor's head dimensions are 4 mm in width/diameter and 24 mm in height/length, with an M4 x 0.7 thread.
- Operating principle:
- Through-beam type
- Actual range Sb:
- 1400 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- Yes
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Brass
- Thread:
- M4 x 0.7
- Bending radius (fixed):
- 12 mm
- Bending radius (mobile):
- 24 mm
- Cable jacket diameter:
- 4 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 4 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
