Baumer FSE 100A4006 10219607
Baumer
$331.40

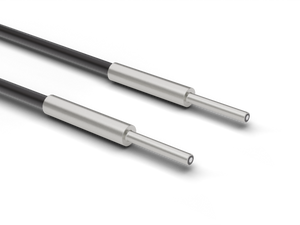

The Baumer FSE 100A4006 10219607 is a through-beam type fiber optic sensor with a smooth, cylindrical sensing head designed for side view applications. It features an actual range of 860 mm and does not allow for fiber shortening or lens adaptability. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm. The sensor head measures 5 mm in width/diameter and 16 mm in height/length, made from aluminum. The fiber optic cable is 100 cm long, has a bending radius of 13.5 mm (fixed) and 27 mm (mobile), and is encased in a PUR jacket with a diameter of 4.5 mm. The fiber itself is made of glass and has a cross section of 2 mm².
- Particular characteristics:
- Smooth sensing head Side view
- Operating principle:
- Through-beam type
- Actual range Sb:
- 860 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=5 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 13.5 mm
- Bending radius (mobile):
- 27 mm
- Cable jacket diameter:
- 4.5 mm
- Material cable jacket:
- PUR
- Fiber cross section:
- 2 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
