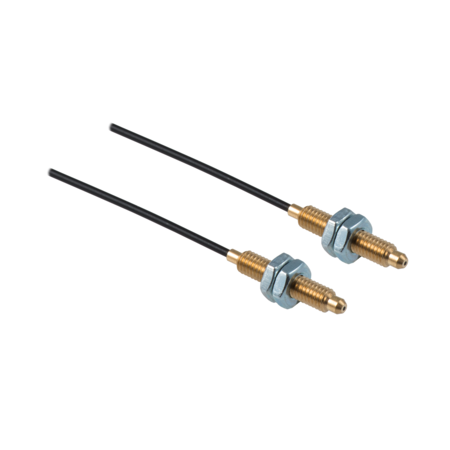

The Baumer FSE 200C1004 10123466 is a through-beam type fiber optic sensor with a cylindrical threaded head. It features an actual range of 444 mm and an exit angle of 60°. The fiber optics can be shortened to the desired length and are adaptable for different lenses, though it does not include an integrated lens. The sensor operates within a temperature range of -30 to +70 °C and is not compatible with infrared light at 1450 nm. The fiber optic head measures 3 mm in width/diameter and 17 mm in height/length, made from durable brass with an M3 x 0.5 thread. The bending radius is 15 mm when fixed and 8 mm when mobile. The cable jacket, with a diameter of 1 mm, is made of PE, and the fiber optic cable itself is plastic, measuring 200 cm in length.
- Operating principle:
- Through-beam type
- Actual range Sb:
- 444 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -30 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- Yes
- Integrated lens:
- No
- Adaptable lens:
- Yes
- Infrared light compatibility (1450 nm):
- NoDiameter Fiber=0.5 mm
- Width / diameter (head):
- 3 mm
- Height / length (head):
- 17 mm
- Material (head):
- Brass
- Thread:
- M3 x 0.5
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 8 mm
- Cable jacket diameter:
- 1 mm
- Material cable jacket:
- PE
- Material (fiber optic cable):
- Plastic
- Length (fiber optic cable):
- 200 cm
