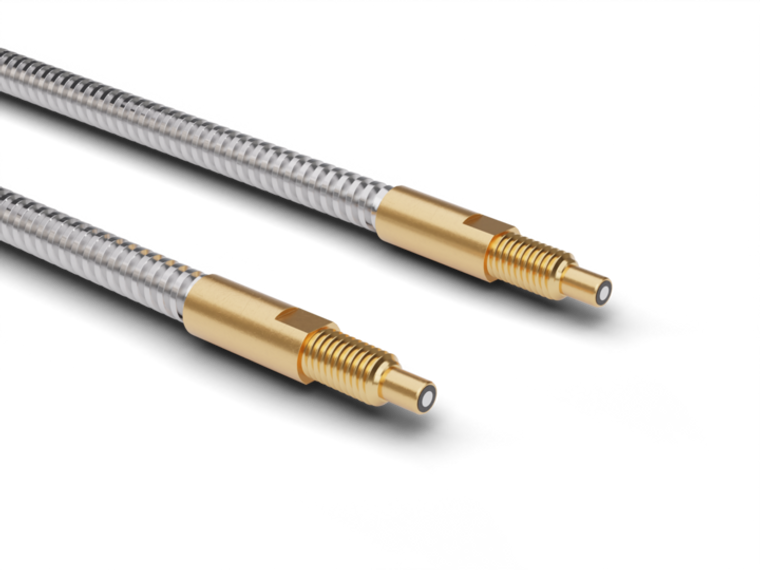

The Baumer FSF 050B1001 10214642 is a through-beam type fiber optic sensor with a cylindrical threaded head made of brass. It features an operating range of 500 mm and can withstand temperatures from -25 to +250 °C. The sensor has a 60° exit angle and is compatible with infrared light at 1450 nm. It does not have an integrated lens but supports adaptable lenses. The fiber optics are not designed to be shortened but boast a robust brass chromium-plated cable jacket and a glass fiber optic cable with a cross-section of 4 mm². The head dimensions are 4 mm in width/diameter and 26 mm in height/length, with an M4 x 0.7 thread. The bending radius is 15 mm for fixed installations and 30 mm for mobile applications, and the cable jacket diameter is 5 mm. The fiber optic cable length is 50 cm. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_FSF-050B1001_EN_20240919_DS.pdf?mediaPK=9203216351262).
- Operating principle:
- Through-beam type
- Actual range Sb:
- 500 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- Yes
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 26 mm
- Material (head):
- Brass
- Thread:
- M4 x 0.7
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 30 mm
- Cable jacket diameter:
- 5 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 4 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
