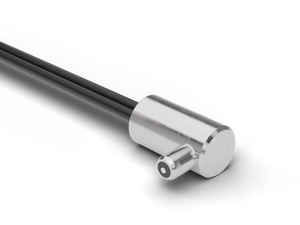

The Baumer FSF 050B4004 10217049 is a through-beam type fiber optic sensor with a smooth, cylindrical sensing head designed for side view applications. It features a sensing range of 500 mm and operates within a temperature range of -25 to +120 °C. The sensor head, made of aluminum, measures 9.8 mm in width and 16 mm in length. It does not support adaptable or integrated lenses but is compatible with infrared light at 1450 nm. The fiber optic cable, constructed from glass, is 50 cm long with a 5 mm brass chromium-plated jacket and a bending radius of 15 mm for fixed installations and 30 mm for mobile applications. The fiber optics cannot be shortened and have a cross-section of 4 mm².
- Particular characteristics:
- Smooth sensing head Side view
- Operating principle:
- Through-beam type
- Actual range Sb:
- 500 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +120 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=9.8 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 30 mm
- Cable jacket diameter:
- 5 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 4 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
