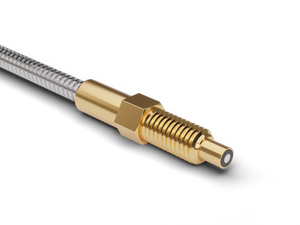

The Baumer FUE 025B1003 10258986 is a diffuse type fiber optic sensor with a sensing distance of 25 mm. It features a cylindrical threaded fiber optic head made of brass, measuring 3 mm in width and 17 mm in length. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses, and the fiber optics cannot be shortened. The fiber optic cable, made of glass, is 25 cm long with a cross section of 0.5 mm², encased in a PUR jacket. The cable has a bending radius of 7.5 mm when fixed and 15 mm when mobile. The thread size is M3 x 0.5.
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 25 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=3 mm
- Height / length (head):
- 17 mm
- Material (head):
- Brass
- Thread:
- M3 x 0.5
- Bending radius (fixed):
- 7.5 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.5 mm
- Material cable jacket:
- PUR
- Fiber cross section:
- 0.5 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 25 cm
- Datasheet:
- View
