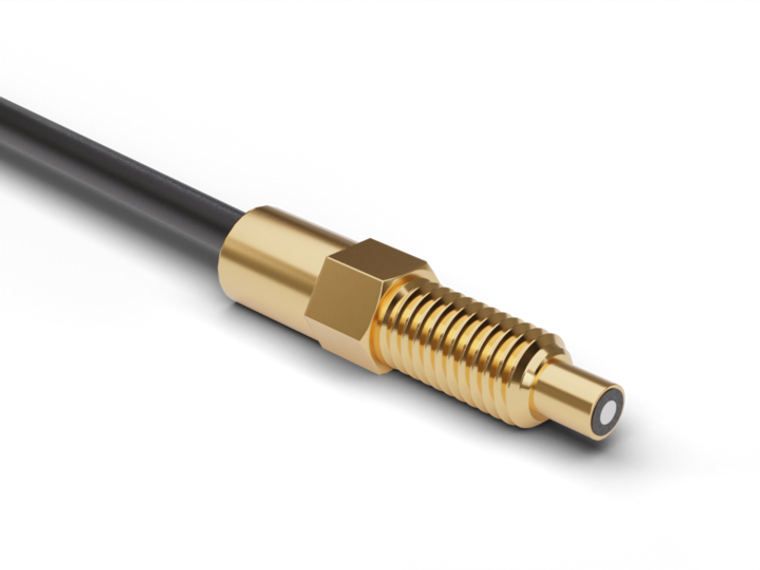

The Baumer FUE 050A1011 10221743 is a diffuse type fiber optic sensor with a sensing distance of 115 mm and a response time between 0.25 and 2.5 ms. It features a cylindrical threaded fiber optic head made of brass, measuring 4 mm in width and 24 mm in length. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses, and the fiber optics cannot be shortened. The fiber optic cable, made of glass, is 50 cm long with a cross section of 2 mm², housed in a PUR jacket with a diameter of 4.5 mm. The bending radius is 13.5 mm when fixed and 27 mm when mobile. The sensor's thread size is M4 x 0.7.
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 115 mm
- Response time / release time:
- 0.25 2.5 ms
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Brass
- Thread:
- M4 x 0.7
- Bending radius (fixed):
- 13.5 mm
- Bending radius (mobile):
- 27 mm
- Cable jacket diameter:
- 4.5 mm
- Material cable jacket:
- PUR
- Fiber cross section:
- 2 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
