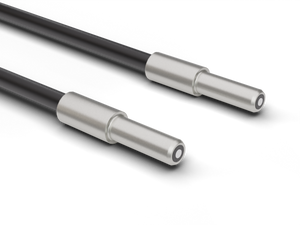

The Baumer FUE 050B2003 10259017 is a diffuse type fiber optic sensor with a smooth sensing head and a sensing distance of 25 mm. It features a cylindrical smooth fiber optic head made of aluminum, measuring 3 mm in width and 17 mm in length. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses, and the fiber optics cannot be shortened. The fiber optic cable is 50 cm long, made of glass, with a PVC jacket that has a diameter of 2.5 mm. The cable's bending radius is 7.5 mm when fixed and 15 mm when mobile. The fiber cross-section is 0.5 mm².
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 25 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=3 mm
- Height / length (head):
- 17 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 7.5 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.5 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 0.5 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
