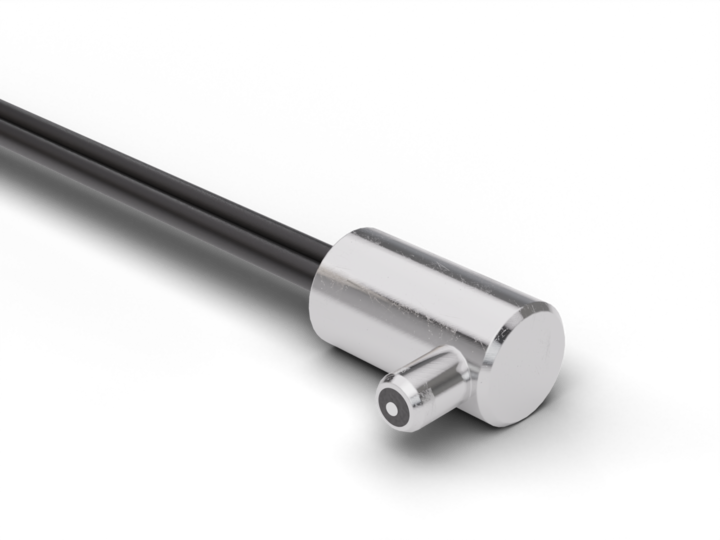

The Baumer FUE 050B4003 10210359 is a diffuse type fiber optic sensor with a smooth, cylindrical sensing head designed for side view applications. It features a sensing distance of 25 mm and operates within a temperature range of -25 to +70 °C. The sensor head, made of aluminum, measures 4 mm in width and 16 mm in length. It does not support adaptable or integrated lenses but is compatible with infrared light at 1450 nm. The fiber optic cable, made of glass, is 50 cm long with a cross section of 0.5 mm² and is encased in a PVC jacket. The fixed bending radius is 7.5 mm, and the mobile bending radius is 15 mm. The sensor's exit angle is 60°.
- Particular characteristics:
- Smooth sensing head Side view
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 25 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 7.5 mm
- Bending radius (mobile):
- 15 mm
- Cable jacket diameter:
- 2.5 mm
- Material cable jacket:
- PVC
- Fiber cross section:
- 0.5 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
