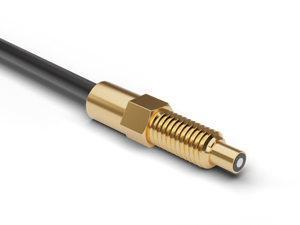

The Baumer FUE 050C2Y10 10135364 is a diffuse type fiber optic sensor with a smooth sensing head and a fine sleeve. It features a sensing distance of 20 mm and a cylindrical smooth fiber optic head with a sleeve. The sensor operates within a temperature range of -30 to +70 °C and has an exit angle of 60°. The fiber optics can be shortened to the desired length, and the head is made of durable stainless steel. The fiber optic cable is 50 cm long, has a bending radius of 4 mm, and is covered with a PE jacket. The sensor does not include an integrated or adaptable lens and is not compatible with infrared light at 1450 nm.
- Particular characteristics:
- Smooth sensing head Fine sleeve
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 20 mm
- Fiber optic head:
- Cylindrical smooth, with sleeve
- Operating temperature:
- -30 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- Yes
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- NoDiameter Fiber=0.25 mm
- Width / diameter (head):
- 3 mm
- Height / length (head):
- 30 mm
- Material (head):
- Stainless steel
- Bending radius (fixed):
- 4 mm
- Cable jacket diameter:
- 1 mm
- Material cable jacket:
- PE
- Material (fiber optic cable):
- Plastic
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
