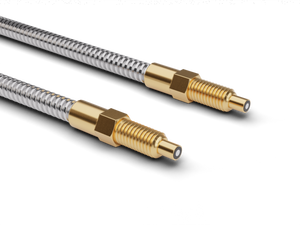

The Baumer FUE 100A1002 is a diffuse type fiber optic sensor with a sensing distance of 60 mm. It features a cylindrical threaded fiber optic head made of brass, measuring 4 mm in width and 24 mm in length, with an M4 x 0.7 thread. The sensor operates within a temperature range of -25 to +70 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support shortening or lens adaptation. The fiber optic cable is 100 cm long, made of glass, with a cross section of 1 mm², and is encased in a PUR jacket with a diameter of 4.5 mm. The fixed bending radius is 13.5 mm, and the mobile bending radius is 27 mm.
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 60 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Brass
- Thread:
- M4 x 0.7
- Bending radius (fixed):
- 13.5 mm
- Bending radius (mobile):
- 27 mm
- Cable jacket diameter:
- 4.5 mm
- Material cable jacket:
- PUR
- Fiber cross section:
- 1 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
