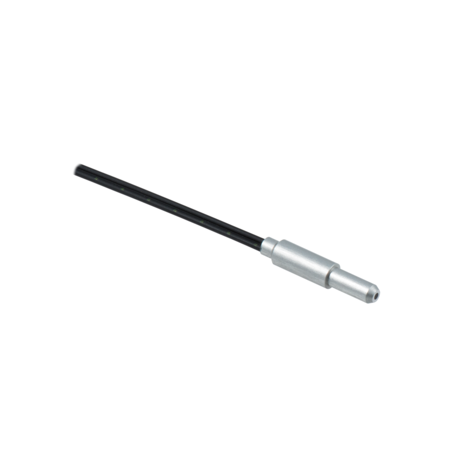

The Baumer FUE 200C2004 10123463 is a diffuse type fiber optic sensor with a smooth sensing head and a sensing distance of 116 mm. It features a cylindrical smooth fiber optic head with a diameter of 0.5 mm and dimensions of 4 mm in width/diameter and 20 mm in height/length, made from aluminum. The sensor operates within a temperature range of -30 to +70 °C and has a 60° exit angle. The fiber optics can be shortened, but it does not support an integrated or adaptable lens, nor is it compatible with infrared light at 1450 nm. The fiber optic cable is 200 cm long, with a bending radius of 15 mm for fixed installations and 8 mm for mobile applications. The cable jacket, made of PE, has a diameter of 1.1 mm, and the fiber optic cable itself is made of plastic.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 116 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -30 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- Yes
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- NoDiameter Fiber=0.5 mm
- Width / diameter (head):
- 4 mm
- Height / length (head):
- 20 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 8 mm
- Cable jacket diameter:
- 1.1 mm
- Material cable jacket:
- PE
- Material (fiber optic cable):
- Plastic
- Length (fiber optic cable):
- 200 cm
