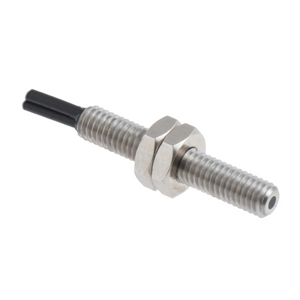

The Baumer FUE 200E1Y00 10135297 is an ultra-flexible, diffuse type fiber optic sensor with a sensing distance of 210 mm. It features a cylindrical threaded fiber optic head made of stainless steel, measuring 6 mm in width/diameter and 20 mm in height/length. The sensor operates within a temperature range of -30 to +70 °C and has a 60° exit angle. The fiber optics can be shortened to the desired length, and the sensor does not include an integrated or adaptable lens. It is not compatible with infrared light at 1450 nm. The fiber optic cable, made of plastic, has a length of 200 cm, a bending radius of 2 mm, and is covered with a PE jacket measuring 2.2 mm in diameter. The thread size is M6 x 0.75.
- Particular characteristics:
- Ultra flexible
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 210 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -30 +70 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- Yes
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- NoDiameter Fiber=1 mm
- Width / diameter (head):
- 6 mm
- Height / length (head):
- 20 mm
- Material (head):
- Stainless steel
- Thread:
- M6 x 0.75
- Bending radius (fixed):
- 2 mm
- Cable jacket diameter:
- 2.2 mm
- Material cable jacket:
- PE
- Material (fiber optic cable):
- Plastic
- Length (fiber optic cable):
- 200 cm
- Datasheet:
- View
