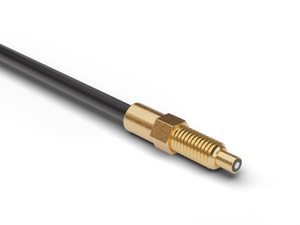

The Baumer FUF 025B1003 10217015 is a diffuse type fiber optic sensor with a sensing distance of 25 mm. It features a cylindrical threaded fiber optic head made of brass, measuring 3 mm in width/diameter and 17 mm in height/length. The sensor operates within a temperature range of -25 to +250 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses. The fiber optics are fixed and cannot be shortened. The bending radius is 15 mm for fixed installations and 24 mm for mobile applications. The cable jacket, made of brass chromium plated, has a diameter of 4 mm, and the fiber optic cable, made of glass, is 25 cm long with a cross section of 0.5 mm². The sensor is threaded with M3 x 0.5. For more detailed information, you can access the datasheet [here](https://www.baumer.com/medias/__secure__/Baumer_FUF-025B1003_EN_20240919_DS.pdf?mediaPK=9203238666270).
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 25 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=3 mm
- Height / length (head):
- 17 mm
- Material (head):
- Brass
- Thread:
- M3 x 0.5
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 24 mm
- Cable jacket diameter:
- 4 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 0.5 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 25 cm
- Datasheet:
- View
