Baumer FUF 050A2005 10217043
Baumer
$245.40

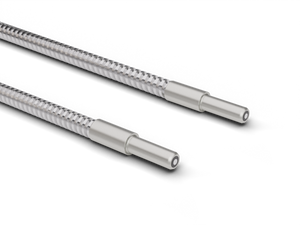

The Baumer FUF 050A2005 10217043 is a diffuse type fiber optic sensor with a smooth sensing head and a sensing distance of 35 mm. It features a cylindrical smooth fiber optic head made of aluminum, measuring 3 mm in width and 17 mm in length. The sensor operates within a temperature range of -25 to +250 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support shortening or adapting the fiber optics. The fiber optic cable is 50 cm long, made of glass, with a cross section of 0.5 mm², and is encased in a brass chromium-plated jacket with a diameter of 4 mm. The fixed bending radius is 15 mm, and the mobile bending radius is 24 mm.
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 35 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=3 mm
- Height / length (head):
- 17 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 24 mm
- Cable jacket diameter:
- 4 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 0.5 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
