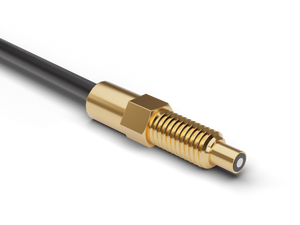

Baumer FUF 050B1011 10217075 is a diffuse type fiber optic sensor with a sensing distance of 100 mm. It features a cylindrical threaded fiber optic head made of brass, measuring 4 mm in width and 26 mm in length. The sensor operates within a temperature range of -25 to +250 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses, and the fiber optics cannot be shortened. The fiber optic cable, made of glass, is 50 cm long with a brass chromium-plated jacket, a fixed bending radius of 15 mm, and a mobile bending radius of 30 mm. The cable jacket diameter is 5 mm, and the fiber cross-section is 2 mm².
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 100 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 26 mm
- Material (head):
- Brass
- Thread:
- M4 x 0.7
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 30 mm
- Cable jacket diameter:
- 5 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 2 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
