Baumer FUF 050B2011 10217072
Baumer
$389.20

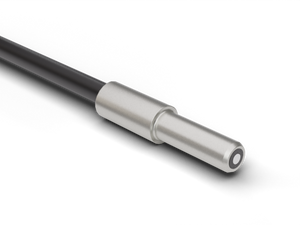

The Baumer FUF 050B2011 10217072 is a diffuse type fiber optic sensor with a smooth sensing head and a sensing distance of 100 mm. It features a cylindrical smooth fiber optic head made of aluminum, measuring 4 mm in width and 24 mm in length. The sensor operates within a temperature range of -25 to +250 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not allow for shortening or adaptation of the lens. The fiber optic cable is 50 cm long, made of glass, and encased in a brass chromium-plated jacket with a diameter of 5 mm. The bending radius is 15 mm for fixed installations and 30 mm for mobile applications. The fiber cross-section is 2 mm².
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 100 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 24 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 30 mm
- Cable jacket diameter:
- 5 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 2 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 50 cm
- Datasheet:
- View
