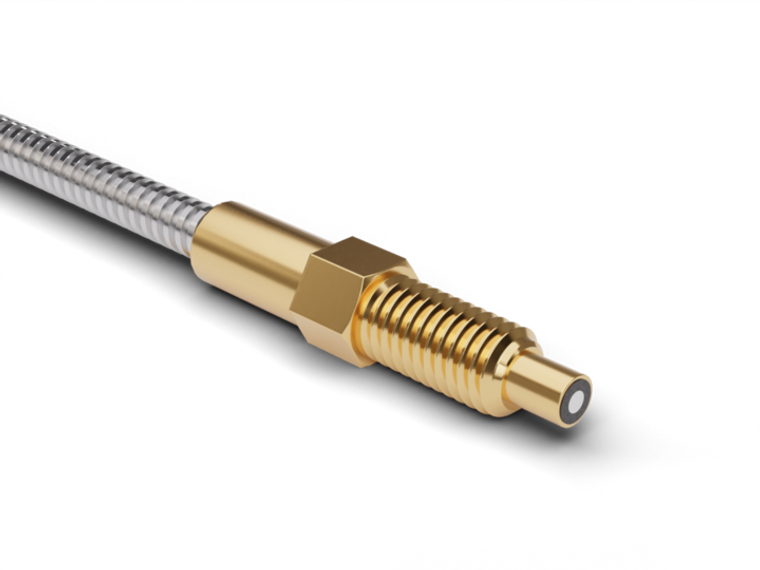

The Baumer FUF 100A1007 10219608 is a diffuse type fiber optic sensor with a sensing distance of 60 mm. It features a cylindrical threaded fiber optic head made of brass, measuring 4 mm in width and 26 mm in length. The sensor operates within a temperature range of -25 to +250 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support adaptable or integrated lenses, and the fiber optics cannot be shortened. The fiber optic cable, made of glass, is 100 cm long with a cross section of 1 mm², encased in a brass chromium-plated jacket. The cable has a bending radius of 15 mm when fixed and 30 mm when mobile.
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 60 mm
- Fiber optic head:
- Cylindrical threaded
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=4 mm
- Height / length (head):
- 26 mm
- Material (head):
- Brass
- Thread:
- M4 x 0.7
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 30 mm
- Cable jacket diameter:
- 5 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 1 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
