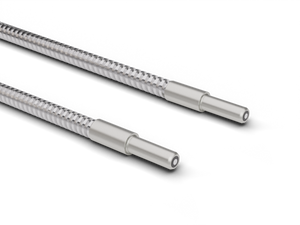

The Baumer FUF 100A2005 10217042 is a diffuse type fiber optic sensor with a smooth sensing head and a sensing distance of 30 mm. It features a cylindrical smooth fiber optic head made of aluminum, measuring 3 mm in width/diameter and 17 mm in height/length. The sensor operates within a temperature range of -25 to +250 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not allow for shortening or adaptation of the fiber optics or lens. The fiber optic cable, made of glass, is 100 cm long with a cross section of 0.5 mm², encased in a brass chromium-plated jacket with a diameter of 4 mm. The fixed bending radius is 15 mm, and the mobile bending radius is 24 mm. For more detailed specifications, refer to the datasheet available [here](https://www.baumer.com/medias/__secure__/Baumer_FUF-100A2005_EN_20240919_DS.pdf?mediaPK=9203259015198).
- Particular characteristics:
- Smooth sensing head
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 30 mm
- Fiber optic head:
- Cylindrical smooth
- Operating temperature:
- -25 +250 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=3 mm
- Height / length (head):
- 17 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 24 mm
- Cable jacket diameter:
- 4 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 0.5 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
- Datasheet:
- View
