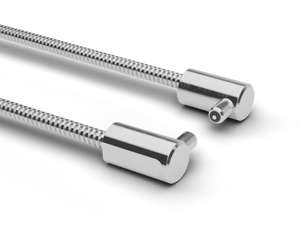

The Baumer FUF 100A4002 10210285 is a diffuse type fiber optic sensor with a sensing distance of 115 mm. It features a cylindrical smooth, side-view fiber optic head made of aluminum, measuring 9.8 mm in width and 16 mm in length. The sensor operates within a temperature range of -25 to +120 °C and has an exit angle of 60°. It is compatible with infrared light at 1450 nm but does not support shortening or lens adaptation. The fiber optic cable is 100 cm long, made of glass, with a brass chromium-plated jacket and a diameter of 5 mm. The fixed bending radius is 15 mm, and the mobile bending radius is 30 mm.
- Operating principle:
- Diffuse type
- Sensing distance Tw:
- 115 mm
- Fiber optic head:
- Cylindrical smooth, side view
- Operating temperature:
- -25 +120 °C
- Exit angle:
- 60°
- Fiber optics can be shortened to length:
- No
- Integrated lens:
- No
- Adaptable lens:
- No
- Infrared light compatibility (1450 nm):
- YesWidth / diameter (head)=9.8 mm
- Height / length (head):
- 16 mm
- Material (head):
- Aluminum
- Bending radius (fixed):
- 15 mm
- Bending radius (mobile):
- 30 mm
- Cable jacket diameter:
- 5 mm
- Material cable jacket:
- Brass chromium plated
- Fiber cross section:
- 2 mm²
- Material (fiber optic cable):
- Glass
- Length (fiber optic cable):
- 100 cm
