Description

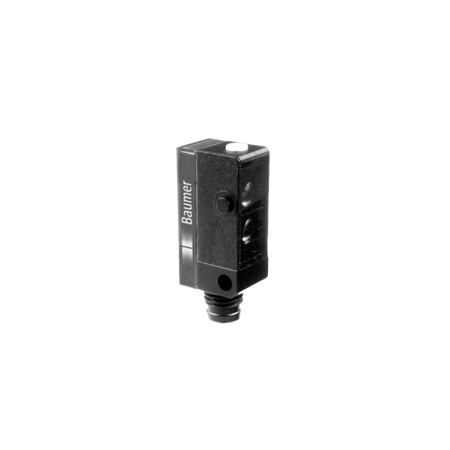

Baumer FZDK 10P5101/S35A 10131281 is an intensity difference sensor with a sensing distance of 5 to 200 mm. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. The sensor is adjustable via a 270° potentiometer and includes suppression of reciprocal influence. It utilizes a pulsed red LED light source with a wavelength of 660 nm and boasts a quick response and release time of less than 1 ms. Operating on a voltage supply range of 10 to 30 VDC, it has a maximum no-load current consumption of 30 mA and a typical consumption of 20 mA. The voltage drop is less than 1.8 VDC. It offers both light and dark operating modes with a PNP output circuit and can handle an output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's dimensions are 10.4 mm in width, 27 mm in height, and 14 mm in depth, with a rectangular, plastic (ASA) housing and PMMA front optics. It connects via an M8 4-pin connector and is rated IP 67 for protection against dust and water ingress, suitable for operating temperatures ranging from -25 to +65 °C.
