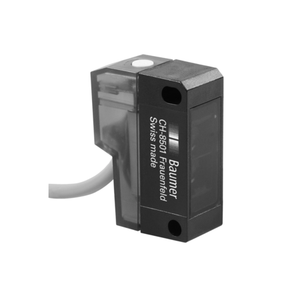

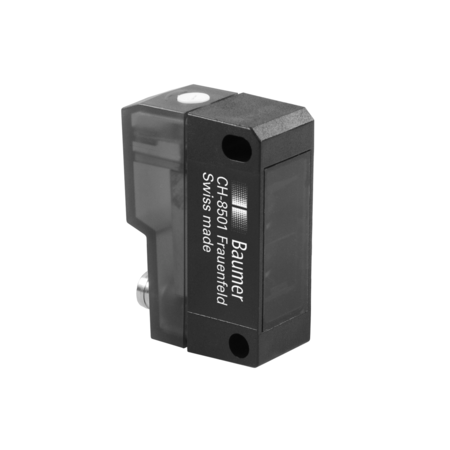

The Baumer FZDK 14N5101/S35A 11001224 is an intensity difference sensor with a sensing distance ranging from 5 to 600 mm. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. Sensitivity can be adjusted via a 270° potentiometer. The sensor is equipped with suppression of reciprocal influence and uses a pulsed red LED light source with a wavelength of 660 nm. It has a fast response and release time of less than 1 ms. Operating on a voltage supply range of 10 to 30 VDC, it consumes a maximum of 25 mA with no load and typically 20 mA. The output function can operate in light or dark conditions, and it includes an NPN output circuit with a maximum output current of 100 mA. Safety features include short circuit and reverse polarity protection. The sensor's compact design measures 14.8 mm in width, 43 mm in height, and 31 mm in depth, with a rectangular plastic housing made of ASA and MABS, and a PMMA front optics. It connects via an M8 4-pin connector and is rated IP 67 for protection against dust and water ingress, suitable for operating temperatures from -25 to +65 °C.
- Type:
- Intensity difference
- Sensing distance Tw:
- 5 600 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED yellow
- Sensitivity adjustment:
- Potentiometer, 270°
- Suppression of reciprocal influence:
- YesLight source=Pulsed red LED
- Wave length:
- 660 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 25 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <1.8 VDC
- Output function:
- Light / dark operate
- Output circuit:
- NPN
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 14.8 mm
- Height / length:
- 43 mm
- Depth:
- 31 mm
- Design:
- Rectangular
- Housing material:
- Plastic (ASA, MABS)
- Front (optics):
- PMMA
- Connection types:
- Connector M8 4 pin
- Protection class:
- IP 67
- Operating temperature:
- -25 +65 °C
- Datasheet:
- View
