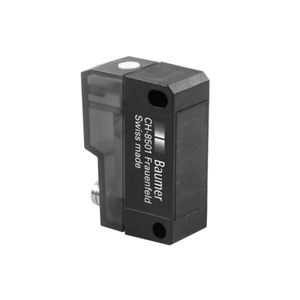

Baumer FZDK 20P5101/S35A 10150010
Baumer
The Baumer FZDK 20P5101/S35A 10150010 is an intensity difference sensor with a sensing distance of 5 to 500 mm. It features a flashing light indicator for alignment or soiled lens detection, and a yellow LED light indicator. Sensitivity can be adjusted via a 270° potentiometer. The sensor includes suppression of reciprocal influence and utilizes a pulsed red LED light source with a wavelength of 660 nm. It has a fast response and release time of less than 0.5 ms. Operating on a voltage supply range of 10 to 30 VDC, it consumes a maximum of 25 mA with a typical consumption of 22 mA. The output functions include light/dark operate with a PNP output circuit and a maximum output current of 100 mA. It offers short circuit and reverse polarity protection. The sensor's dimensions are 20 mm in width, 42 mm in height, and 15 mm in depth, with a rectangular plastic (PBT-ASA) housing and PMMA front optics. It connects via an M8 4-pin connector and is rated IP 67 for protection against dust and water, suitable for operating temperatures from -25 to +65 °C.
