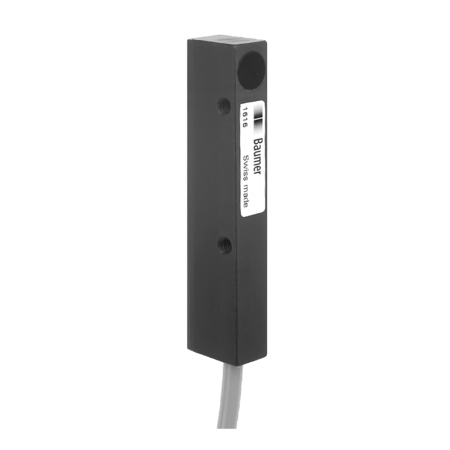

The Baumer FZDM 08P3001 10219185 is an intensity difference sensor with a sensing distance of less than 40 mm. It features a flashing light indicator for alignment or soiled lens detection, and a red LED light indicator. This model does not allow for sensitivity adjustment but includes suppression of reciprocal influence. It utilizes a pulsed infrared diode light source with a wavelength of 880 nm and boasts a quick response and release time of less than 1 ms. The sensor operates on a voltage supply range of 10 to 30 VDC, with a typical current consumption of 20 mA and a maximum of 42 mA. It has a voltage drop of less than 2 VDC and supports a dark operate output function with a PNP output circuit and a maximum output current of 100 mA. Additionally, it includes short circuit and reverse polarity protection. The sensor's dimensions are 8 mm in width, 58 mm in height, and 12 mm in depth, with a rectangular, anodized aluminum housing and a PC front optics. It connects via a 3-pin, 2-meter cable and is rated IP 65 for protection against dust and water, suitable for operating temperatures ranging from -25 to +65 °C.
- Type:
- Intensity difference
- Sensing distance Tw:
- < 40 mm
- Alignment / soiled lens indicator:
- Flashing light indicator
- Light indicator:
- LED red
- Sensitivity adjustment:
- No
- Suppression of reciprocal influence:
- YesLight source=Pulsed infrared diode
- Wave length:
- 880 nm
- Response time / release time:
- < 1 ms
- Voltage supply range +Vs:
- 10 30 VDC
- Current consumption max. (no load):
- 42 mA
- Current consumption typ.:
- 20 mA
- Voltage drop Vd:
- <2 VDC
- Output function:
- Dark operate
- Output circuit:
- PNP
- Output current:
- 100 mA
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Width / diameter:
- 8 mm
- Height / length:
- 58 mm
- Depth:
- 12 mm
- Design:
- Rectangular
- Housing material:
- Aluminum anodized
- Front (optics):
- PC
- Connection types:
- Cable 3 pin, 2 m
- Protection class:
- IP 65
- Operating temperature:
- -25 +65 °C
