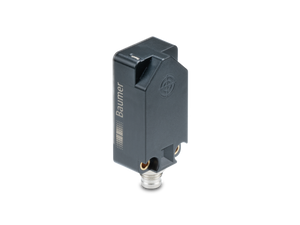

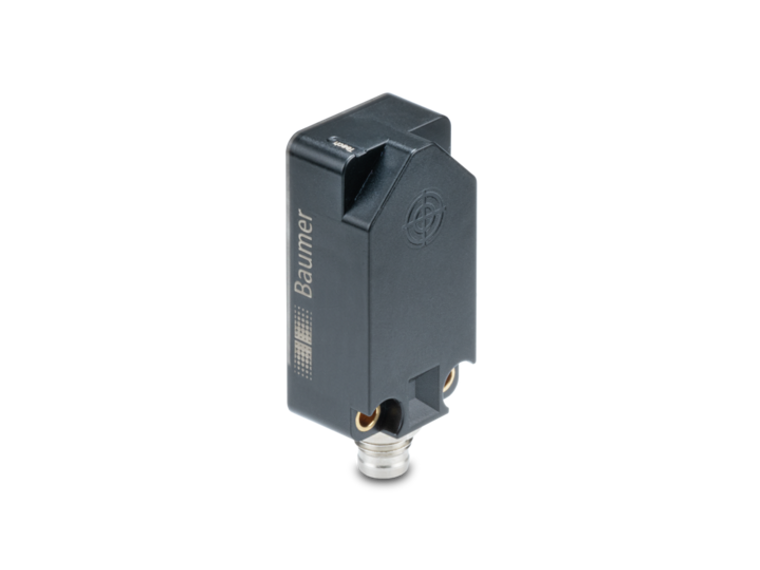

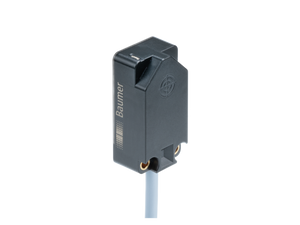

Baumer IF200.D10L-Q41.GP2O.71N/A014 is a high-precision, non-flush distance measuring sensor with a measuring range of 0 to 10 mm and a resolution of less than 0.022 mm in High Accuracy Mode. It features IO-Link dual channel technology, adjustable hysteresis, and multiple teach modes including single point, two point, and window. The sensor offers excellent linearity with an error of ±40 µm for distances up to 8 mm and ±60 µm up to 10 mm. It is equipped with LED indicators for power, output status, and output 2 status, and supports various response times and switching frequencies to suit different application needs. The sensor operates on a voltage supply range of 8 to 30 VDC, with a maximum current consumption of 25 mA. It includes protection against short circuits and reverse polarity, and operates within a temperature range of -25 to +75 °C. The robust SAN housing measures 20 mm x 41 mm and is IP67 rated, ensuring durability and resistance to harsh environments. Connection is facilitated via an M8 4-pin connector.
- Mounting type:
- Non-flush
- Special type:
- Linearized
- Particular characteristics:
- IO-Link dual channel
- Type:
- Distance measuring
- Measuring distance Sd:
- 0 10 mm
- Resolution:
- < 0.022 mm (High Accuracy Mode)
- Repeat accuracy:
- 0.022 mm
- Adjustment:
- qTeach IO-Link
- Teach:
- Single point, Two point, Window
- Linearity error:
- ± 40 µm (S = 0 ... 8 mm) ± 60 µm (S = 0 ... 10 mm)
- Temperature drift:
- ± 2 % (Full Scale)
- Hysteresis:
- < 99 % (adjustable)
- Power on indication:
- LED green
- Output indicator:
- LED yellow
- Output indicator Output 2:
- LED red
- Response time (factory characteristic):
- < 0.6 ms (High Speed Mode) < 0.9 ms (Standard Mode) < 2.3 ms (Robust Mode) < 10.5 ms (High Accuracy Mode)
- Switching frequency:
- 800 Hz (High Speed Mode) 500 Hz (Standard Mode) 150 Hz (Robust Mode) 30 Hz (High Accuracy Mode)
- Voltage supply range +Vs:
- 8 30 VDC
- Current consumption max. (no load):
- 25 mA
- Output circuit:
- PNP Push-pull IO-Link
- Output current:
- 100 mA, sum of all outputs
- Voltage drop Vd:
- <2.5 VDC
- Short circuit protection:
- Yes
- Reverse polarity protection:
- Yes
- Baud rate:
- 230.4 kBaud (COM 3)
- Design:
- Rectangular
- Material (sensing face):
- SAN
- Housing material:
- SAN
- Dimension:
- 20 mm
- Housing length:
- 41 mm
- Connection types:
- Connector M8 4 pin
- Operating temperature:
- -25 +75 °C
- Protection class:
- IP 67
